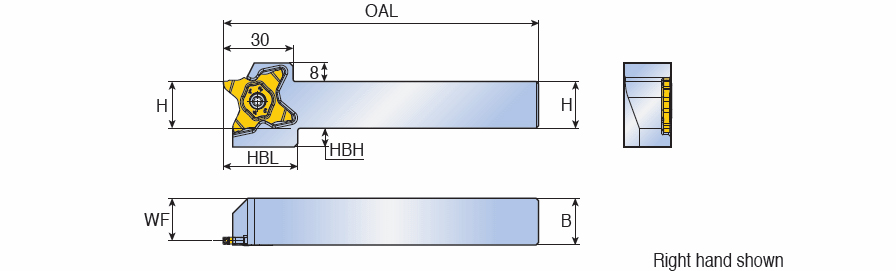

| Shank Height (H) | 20 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 20 mm | Measurement Type | Metric |
| Cutting Width Minimum (CWN) | 1.5 mm | Insert Seat Size Code (SSC) | 34 |
| Cutting Width Maximum (CWX) | 4 mm | Master Insert Identification (MIID) | TQC 34-2.00-0.20 |
| Overall Length (OAL) | 135 mm | Functional Width (WF) | 18.2 mm |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | | Head Bottom Offset Height (HBH) | 8 mm |
| Body Material | Steel | Unit | M |
| Work Piece Parting Diameter Maximum (CUTDIA) | 34 |
Product Features
| Family Description | External holders for Parting & Grooving with TQ. 34 inserts | FamilyName | TQHR/L-34 |
| Remarks | External Turning & Grooving is available depending on the insert | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.8500
Name

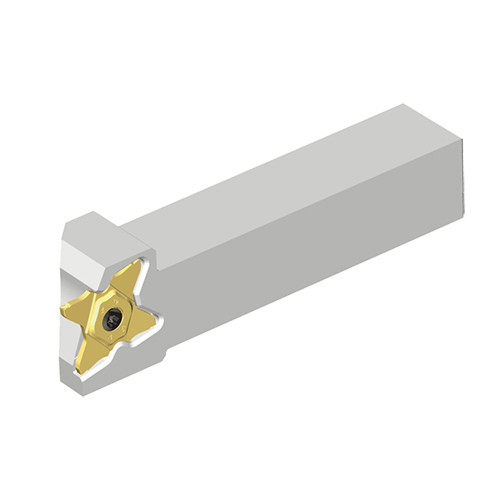

Parting Off Indexable Holders
FamilyName
TQHR/L-34
BrandName
Taegutec
