S25T SVQBR 16
Screw type boring bars for positive 35° Rhombic inserts of 5° clearance angle with 108° approach angle
Price: Log in For Price

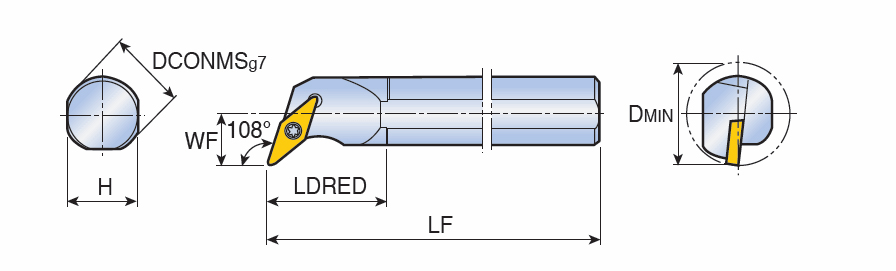

| Connection Diameter Machine Side (DCONMS) | 25 mm | Application | | Int 100° App 70° Diamond | Int 108° App 35° Diamond | |
| Functional Length (LF) | 300 mm | Body Material | Steel |
| Reduced Body Diameter Length (LDRED) | 40 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 32 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Screw type boring bars for positive 35° Rhombic inserts of 5° clearance angle with 108° approach angle | FamilyName | S-SVQBR/L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
1.0800
Name
Indexable Internal Turning Tools
FamilyName
S-SVQBR/L
BrandName
Taegutec
