HSF 4120 180 300 TT5505

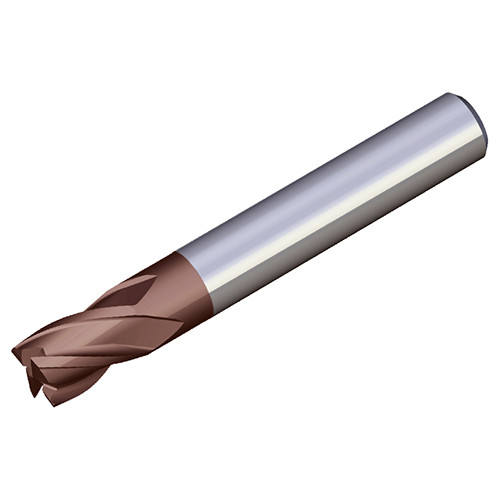

High precision solid carbide end mills of flat type with long neck & 4 flute for high speed machining of hardened steel & pre-hardened steel
Price: Log in For Price

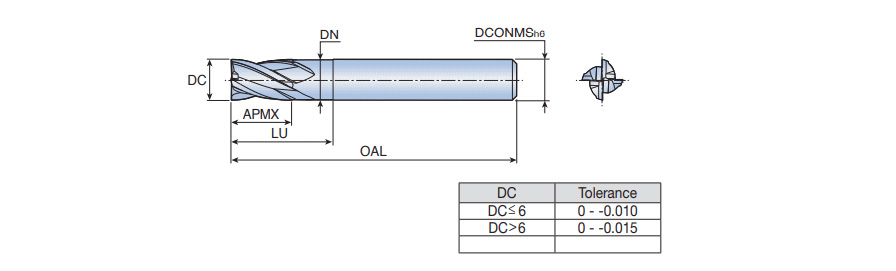

| Cutting Diameter (DC) | 12 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Usable Length (LU) | 30 mm |
| Depth of Cut Maximum (APMX) | 18 mm | Applicable Material | | Steel | Hard Materials | |
| Overall Length (OAL) | 80 mm | Application | | Drill Mill | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | Step down machining | |
| Cutting Edge Material | Carbide | Grade | TT5505 |
| Coating | AlTiN | Neck Diameter (DN) | 11.9 |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round | Unit | M |
Product Features
| Family Description | High precision solid carbide end mills of flat type with long neck & 4 flute for high speed machining of hardened steel & pre-hardened steel | FamilyName | HSF 4 (6.0-12.0) |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.1285
Name
Square & Corner Radius End Mills
FamilyName
HSF 4 (6.0-12.0)
BrandName
Taegutec
