VBET 110302 L-GF TT9020

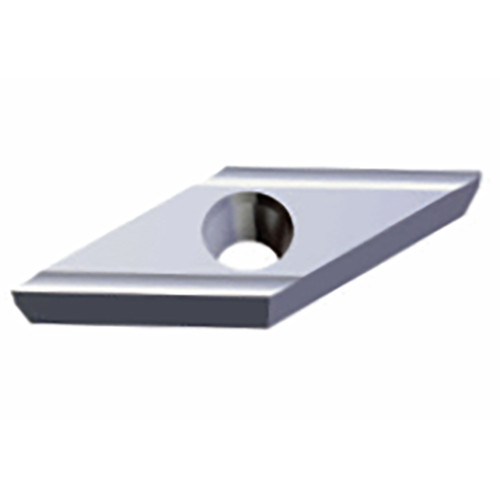

Precision positive 35° rhombic inserts with sharp high rake high rake cutting edge for small parts super finishing of steel, stainless steels & alloy steel
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | | Grade | TT9020 |
| Application | | Ext 117.5° App 35° Diamond | Ext 72.5° App 35° Diamond | Ext 93° App 35° Diamond | Ext 93° App Sleeve 35° Diamond | Ext 95° App Shift 35°Diamond | Inserts | Int 100° App 70° Diamond | Int 108° App 35° Diamond | Int 117.5 App 35° Diamond | Int 142° App 35° Diamond | Int 93° App 35° Diamond | Tools for Swiss Machines | Y Axis holders | | Min D.O.C. | 0.3 mm |

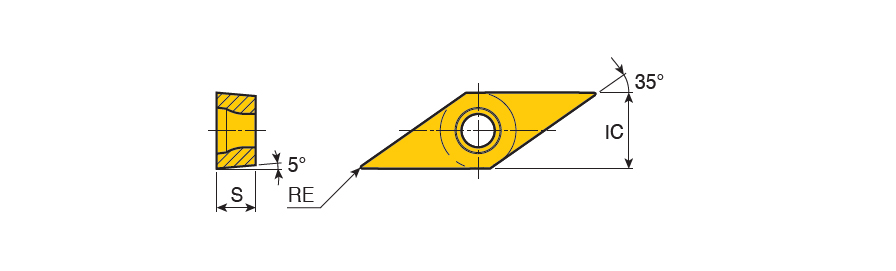

| Corner Radius (RE) | 0.2 mm | Depth of Cut Maximum (APMX) | 1.5 mm |
| Cutting Edge Length (L) | 11.1 mm | Min. Turning Feed (ft(min)) | 0.03 mm/rev |
| Insert Thickness (S) | 3.18 mm | Max. Turning Feed (ft(max)) | 0.17 mm/rev |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN | Unit | M |
Product Features
| Family Description | Precision positive 35° rhombic inserts with sharp high rake high rake cutting edge for small parts super finishing of steel, stainless steels & alloy steel | FamilyName | VBET R/L-GF |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0038
Name
Turning Indexable Inserts
FamilyName
VBET R/L-GF
BrandName
Taegutec
