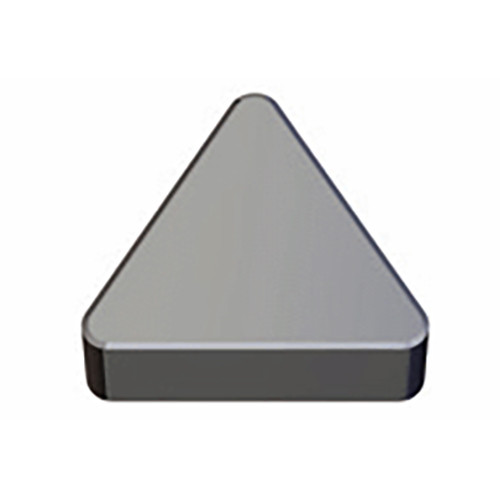

TNGN 160404 AB30
Negative Triangular ground Ceramic inserts without hole for cast iron & hardened steel machining
Price: Log in For Price
| Applicable Material | | Cast Iron | Hard Materials | | Grade | AB30 |
| Application | | Ext 93° App 60° Triangle | Inserts | Int 91° App 60° Triangle | | Min D.O.C. | 0.1 mm |

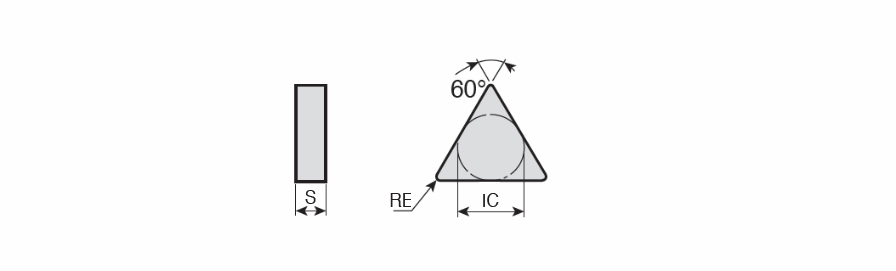

| Corner Radius (RE) | 0.4 mm | Depth of Cut Maximum (APMX) | 2.5 mm |
| Cutting Edge Length (L) | 16.5 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Thickness (S) | 4.76 mm | Max. Turning Feed (ft(max)) | 0.15 mm/rev |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
| Coating | TiCN+Al2O3 | Unit | M |
Product Features
| Family Description | Negative Triangular ground Ceramic inserts without hole for cast iron & hardened steel machining | FamilyName | TNGN-CERAMIC |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0038
Name
Turning Indexable Inserts
FamilyName
TNGN-CERAMIC
BrandName
Taegutec
