APKT 170516R-M TT8020

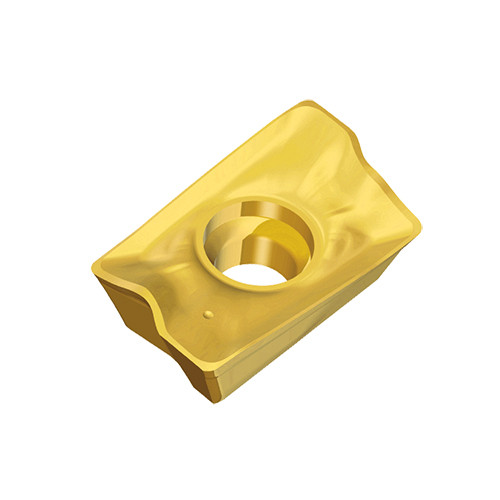

Various corner radii inserts of APKT 17 with two helical cutting edges for general machining in 90° shoulders
Price: Log in For Price

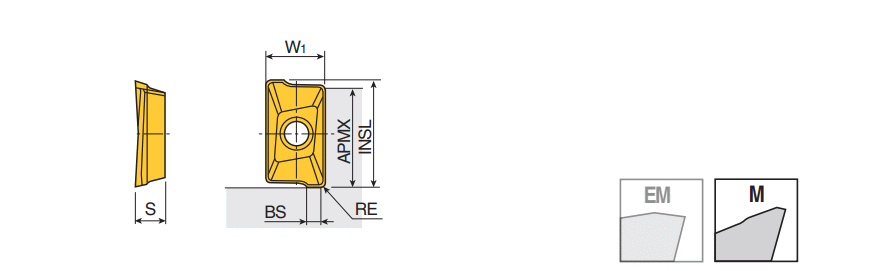

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.3 mm/tooth |
| Application | | Chamfer & Serration | Facing | Helical Interpolation | Inserts | Rampdown | Shouldering | Slotting | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1.6 mm | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Depth of Cut Maximum (APMX) | 13 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 5.56 mm | Measurement Type | Metric |
| Coating | TiCN | Body Material | Carbide |
| Grade | TT8020 | Unit | M |
Product Features
| Family Description | Various corner radii inserts of APKT 17 with two helical cutting edges for general machining in 90° shoulders | FamilyName | APKT 1705 R-M |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0094
Name
Milling Indexable Inserts
FamilyName
APKT 1705 R-M
BrandName
Taegutec
