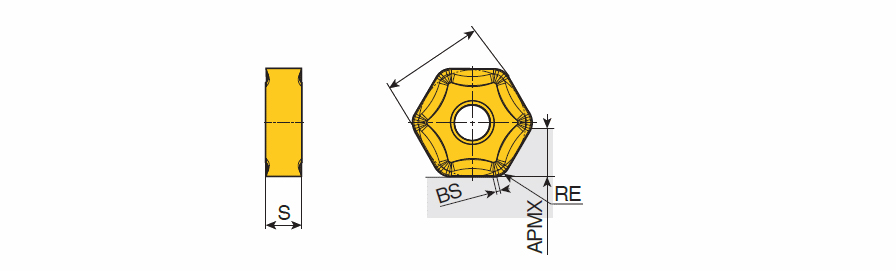

| Applicable Material | | Steel | Cast Iron | | Grade | TT7080 |
| Application | | Chamfer & Serration | Facing | High Feed Milling | Inserts | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Cutting Edge Length (L) | 6.1 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 1 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Depth of Cut Maximum (APMX) | 5 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 19.05 mm | Body Material | Carbide |
| Insert Thickness (S) | 6.35 mm | Unit | M |
| Coating | TiAlN+TiN |
Product Features

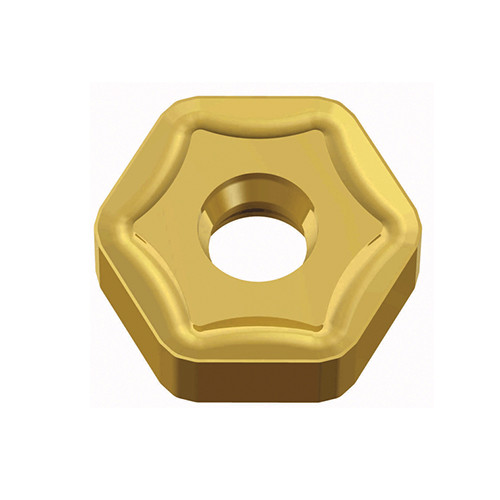

| Family Description | HEXA2MILL Double-side insert(12 cutting edge) | FamilyName | HNHX 1006 ANTN-M |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0238
Name
Milling Indexable Inserts
FamilyName
HNHX 1006 ANTN-M
BrandName
Taegutec
