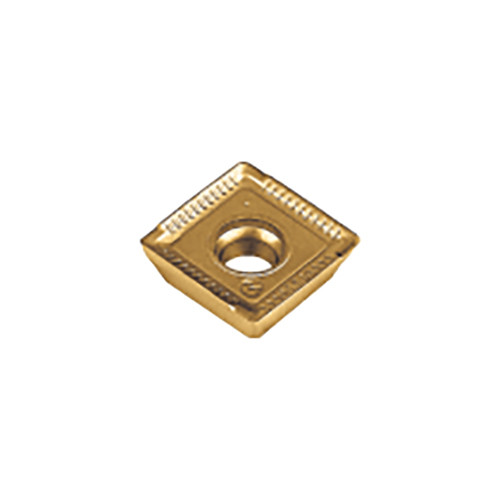

SEMT 1304 PETR-ML TT9080
Positive square inserts with 4 helical cutting edges for 90° shoulder milling
Price: Log in For Price

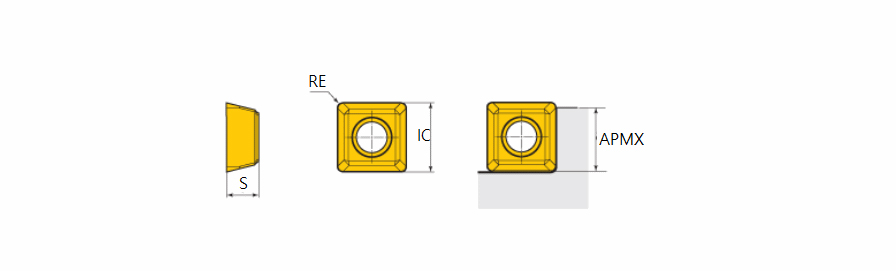

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.14 mm/tooth |
| Application | | Facing | Inserts | Shouldering | Slotting | | Cutting Edge Material | Carbide |
| Cutting Edge Length (L) | 13.68 mm | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Depth of Cut Maximum (APMX) | 8.8 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 4.76 mm | Measurement Type | Metric |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | TT9080 | Unit | M |
Product Features
| Family Description | Positive square inserts with 4 helical cutting edges for 90° shoulder milling | FamilyName | SEMT 13 PETR-M/ML |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0089
Name
Milling Indexable Inserts
FamilyName
SEMT 13 PETR-M/ML
BrandName
Taegutec
