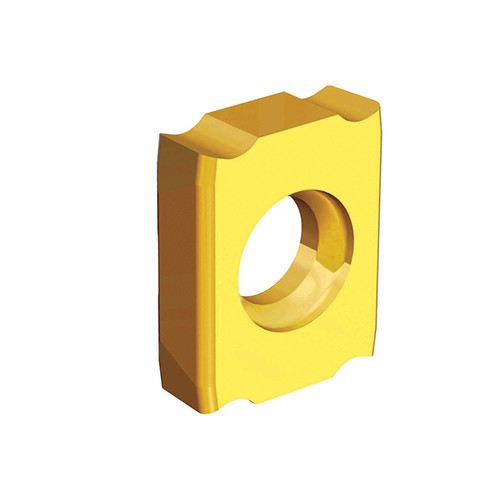

SLOT 023-04 TT8080
Precision ground tangential inserts for slotting & grooving with 4 cutting edges in small diameter tools less than D63
Price: Log in For Price

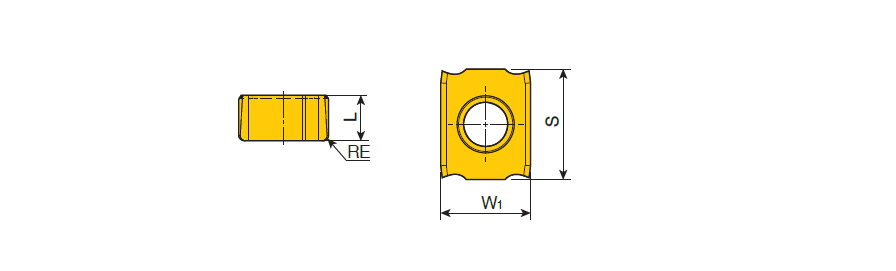

| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.08 mm/tooth |
| Application | | Bottom Shouldering | Inserts | Internal Groove Milling | Side Slotting | T Slotting | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.4 mm | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Insert Thickness (S) | 8 mm | Measurement Type | Metric |
| Coating | TiAlN+TiN | Body Material | Carbide |
| Grade | TT8080 | Unit | M |
Product Features
| Family Description | Precision ground tangential inserts for slotting & grooving with 4 cutting edges in small diameter tools less than D63 | FamilyName | SLOT 04 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0024
Name
Milling Indexable Inserts
FamilyName
SLOT 04
BrandName
Taegutec
