| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TT8020 |
| Application | | Counter Boring | Drill Mill | Facing | Helical Interpolation | Inserts | Rampdown | Shouldering | Side Plunging | Slotting | Step down machining | | Maximum Feed per Tooth (fz(max)) | 0.06 mm/tooth |

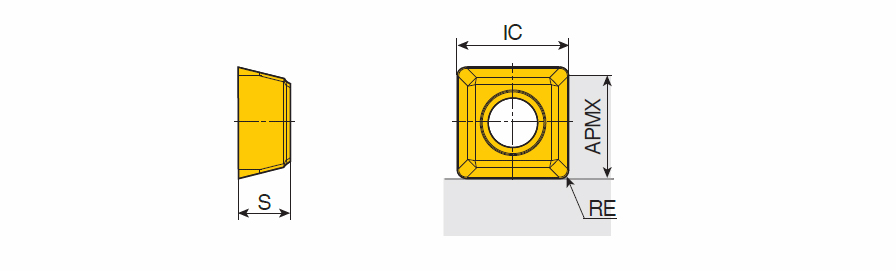

| Cutting Edge Length (L) | 5.6 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.4 mm | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Depth of Cut Maximum (APMX) | 4.48 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 6.16 mm | Body Material | Carbide |
| Insert Thickness (S) | 2.56 mm | Unit | M |
| Coating | TiCN |
Product Features

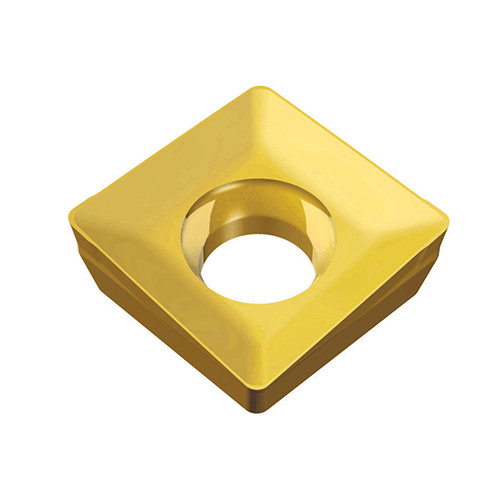

| Family Description | Inserts for Milling, Drilling and Boring with 2 Right -and 2 Left-Hand Cutting Edges for General Use | FamilyName | XOMT 06 |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
0.0020
Name
Milling Indexable Inserts
FamilyName
XOMT 06
BrandName
Taegutec
