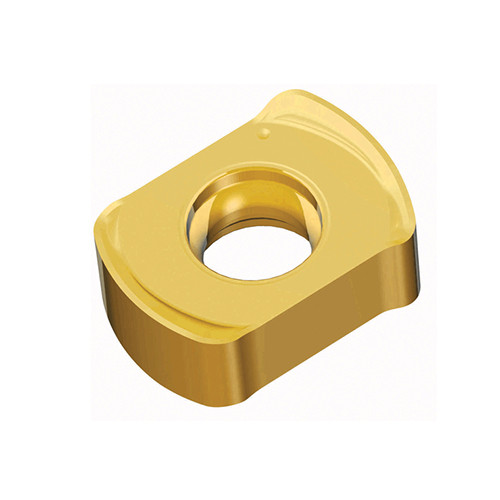

BLMP 0904R-M TT8525B
Unique double-sided inserts of 4 cutting edges for high feed milling of general applications in max. depth of cut 1.5 mm
Price: Log in For Price
| Applicable Material | | Steel | Stainless Steel | | Grade | TT8525B |
| Application | | Facing | Helical Interpolation | High Feed Milling | Inserts | Profiling | Rampdown | | Maximum Feed per Tooth (fz(max)) | 1.3 mm/tooth |
| Cutting Edge Length (L) | 11.94 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 1.5 mm | Minimum Feed per Tooth (fz(min)) | 0.3 mm/tooth |

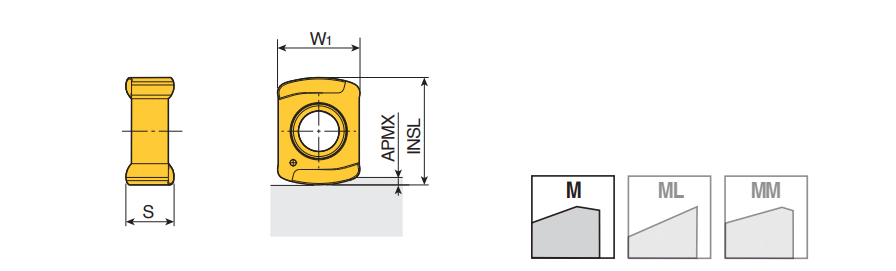

| Insert Width (W1) | 9.2 mm | Measurement Type | Metric |
| Insert Thickness (S) | 4.79 mm | Body Material | Carbide |
| Coating | MTCN-Al2O3-TiN | Unit | M |
Product Features
| Family Description | Unique double-sided inserts of 4 cutting edges for high feed milling of general applications in max. depth of cut 1.5 mm | FamilyName | BLMP 09-M |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0045
Name
Milling Indexable Inserts
FamilyName
BLMP 09-M
BrandName
Taegutec
