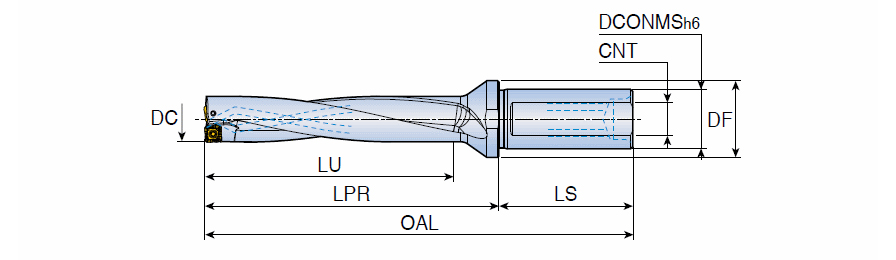

| Cutting Diameter (DC) | 20 mm | Overall Length (OAL) | 179 mm |
| Usable Length (LU) | 100 mm | Connection Thread Size (Ts) | M16X1.5 |
| Application | | Drilling | Tools for Swiss Machines | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Length Group | 5xD |
| Shank Length (LS) | 56 mm | Body Material | Steel |
| Functional Length (LF) | 123 mm | Unit | M |
Product Features

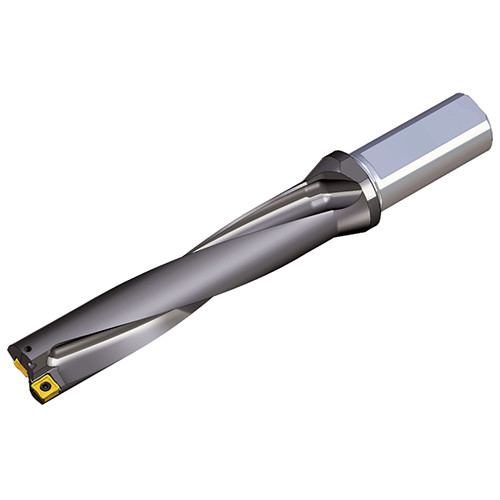

| Family Description | Indexable drills with unique square inserts & coolant holes, drilling depth 5xD | COO | S.KOREA |
Shipping Info
Weight per item
0.4000
