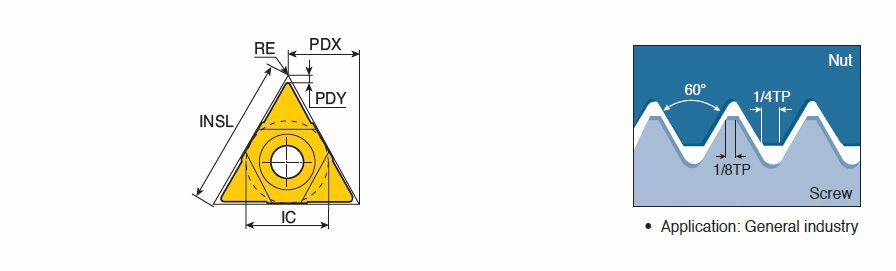

| Inscribed Circle Diameter (IC) | 12.7 mm | Cutting Edge Material | Carbide |
| Insert Length (INSL) | 22 mm | Application | | Internal Threading | |
| Thread Pitch (TP) | 6 mm | Applicable Material | | Steel | Cast Iron | |
| Corner Radius (RE) | 0.4 mm | Measurement Type | Metric |
| Grade | TT7010 | Body Material | Carbide |
| Coating | TiN | Unit | M |
Product Features
| Family Description | Internal ISO metric full profile thread U-type threading inserts | FamilyName | UIRL-ISO |
| COO | ISRAEL | BrandName | TaeguTec |
Shipping Info
Weight per item
0.0110
Name

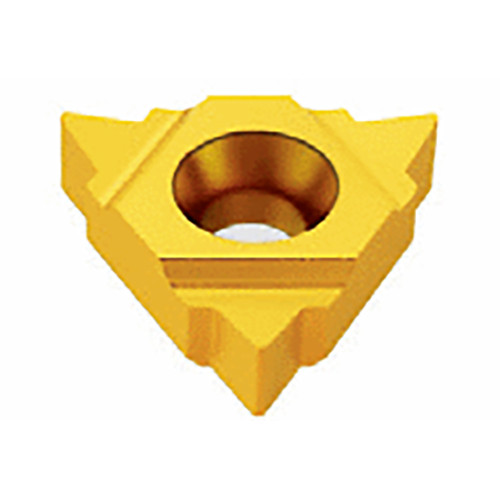

Laydown Threading Indexable Inserts
FamilyName
UIRL-ISO
BrandName
TaeguTec
